Name: Discount 🛒 BMI Dyno Cams AN001 Grind Cam For Animal (Stock) 🤩
SKU: AN001-WC or AN001-WC-CR
Availability: InStock

New

Original price was: $81.95.Current price is: $58.18.

SKU: AN001-WC or AN001-WC-CR Category: Briggs Engines and Parts Tag: BMI

Product Specifications:

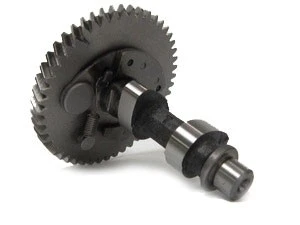

The AN001 grind is a WKA Spec Cam for the Animal Stock Class. This cam will give you 1/2 HP over the stock cam and still meet the tech requirements for this class. You will see significant power in the mid and upper power range.
Used in purple and blue plate applications.
The Lobes on this Cam are Welded for extra durability.
Available with or without compression release installed

Grind Number : AN001
Engine: Briggs 6.5HP Animal
Recommended Class: Stock / Junior
Target (Max) RPM: 6800-7200
Spring Pressure (In / Ex): 18 lbs
Valve Lash (In / Ex): .003″
Ignition Timing: 28-29 Deg BTDC

Valve Timing
	Intake	Exhaust
Open	28.3 BTDC	70.7 BBDC
Close	65.4 ABDC	21.0 ATDC
Lift	.2565”	.2565”
C/L	105.6 ATDC	114.8 BTDC
DUR @ 50:	210.1 Deg	216.5 Deg
DUR @ 200:	103.5 Deg	107.3 Deg
